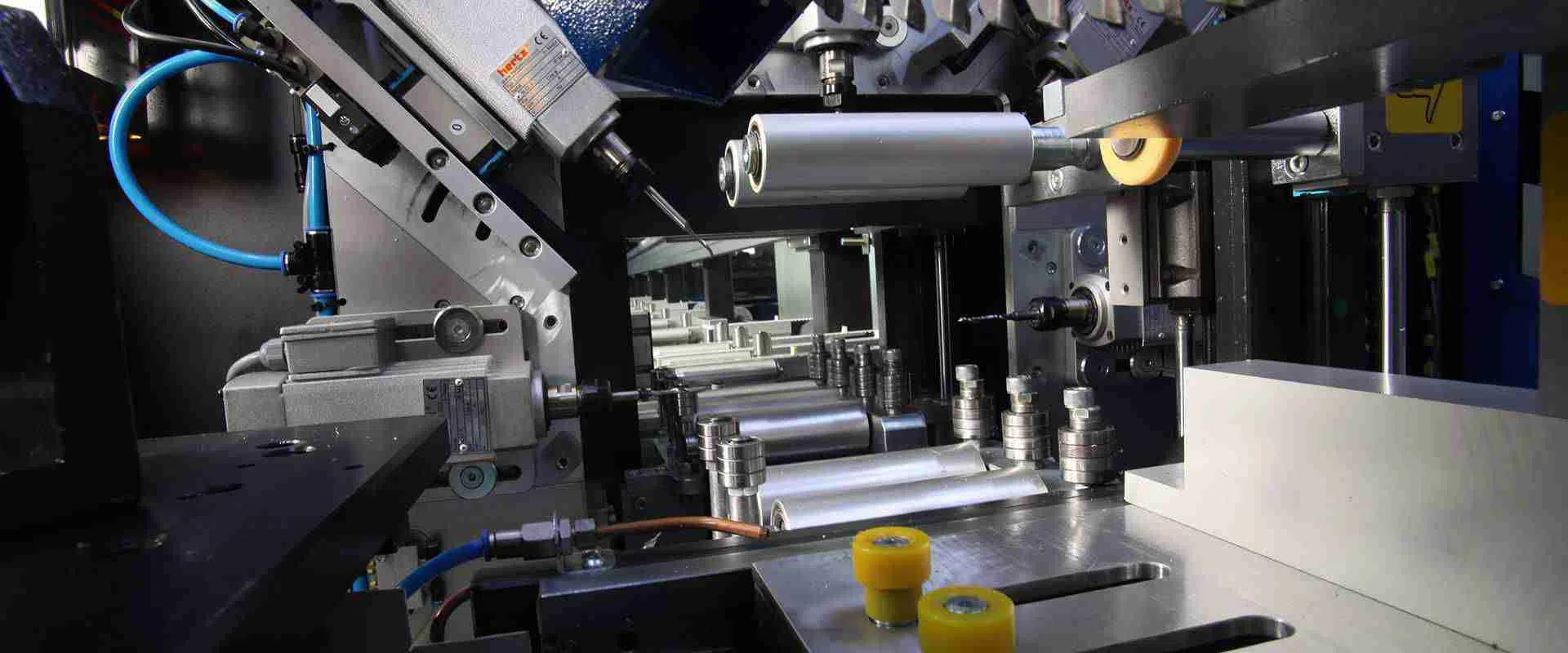

PVC Profile Machining and Cutting Center
Description
• Windows-based operating system with a 21.5” IPS display
• User-friendly interface
• Optional barcode printing unit
• 9 high-speed milling motors
• Three Ø500 mm fixed cutting units positioned at 45°, 90° and 135°
• Gripper arm capable of moving along 3 axes
• Automatic profile gripping
• Automatic profile length detection
• Profile loading capacity from 500 to 6500 mm
• Automatic lubrication unit
• Waste chip conveyor
• Profile and operation definition via TURBOCAM
• Remote diagnostics and service support
• CSV data transfer to TURBOCAM
• Profile and operation copying
• Profile-based operation optimization
• User-defined profiles and machining operations
• Barcode labelling of all parts or individual parts
Diagrams
TURBOCUT 400 light
Specifications
Electrical Technical Values
| Power Supply | 400V / 22kW |
Air Consumption
| Air Pressure | 6-8 Bar |
| Air Consumption | 130 L/min |
Machine
| Machine Weight | 3620 kg |
| Machine Height | 2390 mm |
| Machine Width | 4395 mm |
Profile
| Machine Length | 17160 mm |
| Maximum Loadable Profile Length | 6500 mm |
| Minimum Loadable Profile Length | 500 mm |
Cutting
| Maximum Machinable Profile Height | 150 mm |
| Minimum Machinable Profile Height | 35 mm |
| Maximum Machinable Profile Width | 130 mm |
| Minimum Cuttable Profile Length | 350 mm |
| Minimum Machinable Profile Width | 30 mm |
| Maximum Cuttable Profile Length | 6500 mm |
